Isolierkörper | Thermoplastischer Kunststoff, nach UL94 V-0 |
---|---|
Kontaktmaterial | Vierkantstift 1,14mm, Kupferlegierung |
Kontaktoberfläche | Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm) |
Lötbarkeit | IEC 60512-12A |
Durchgangswiderstand | < 20mΩ |
Isolationswiderstand | > 1000MΩ |
Spannungsfestigkeit | 500VAC |
Nennstrom | 7,9A |
Temperaturbereich | -40°C ... +105°C |
Verarbeitung | Wellen- oder Reflow-Lötverfahren |
Series | Dimensions | Contacts | Type | Plating |
---|---|---|---|---|
985 | 40 | 05 | 1 | 50 |

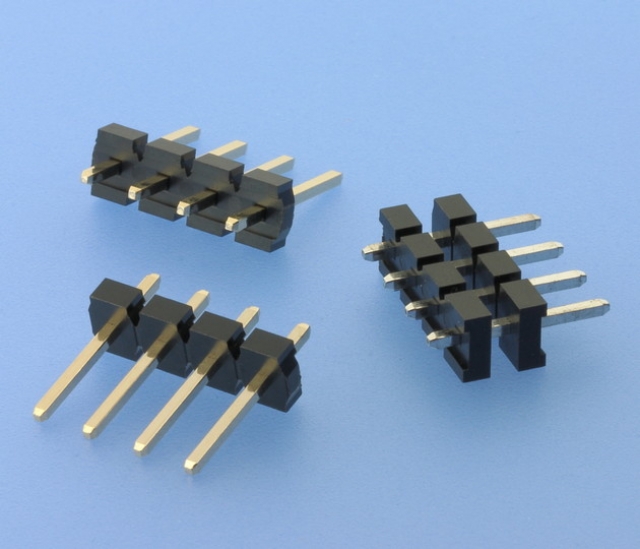

985 Single Body |
40 B=4,5 C=3,3mm 10 B=11,94 C=4,57mm 20 B=13,21 C=4,57mm 99 Kundenspezifisch |
02-20 |
1 Gerade |
50 Verzinnt |
Series | Dimensions | Contacts | Type | Plating |
---|---|---|---|---|
985 | 50 | 04 | 3 | 50 |
50 B=4,5 C=3,3 D=4,5mm 99 Kundenspezifisch |
02-20 |
2 Steckseitig gewinkelt 3 Lötseitig gewinkelt |
50 Verzinnt |
