Isolierkörper | Thermoplastischer Kunststoff, nach UL94 V-0 |
---|---|
Kontaktmaterial | Kupferlegierung |
Aderquerschnitt | AWG 32 ~ 28 |
Lötbarkeit | IEC 60512-12A |
Durchgangswiderstand | < 20mΩ |
Isolationswiderstand | > 500MΩ |
Spannungsfestigkeit | 500VAC |
Nennspannung | 100VAC |
Nennstrom | 1A |
Temperaturbereich | -25°C ... +85°C |
Verarbeitung | Reflow-Lötverfahren |
Series | Contacts | Type | Plating | Packaging |
---|---|---|---|---|
5690 | 06 | 3 | 50 | ST |
02-13 |

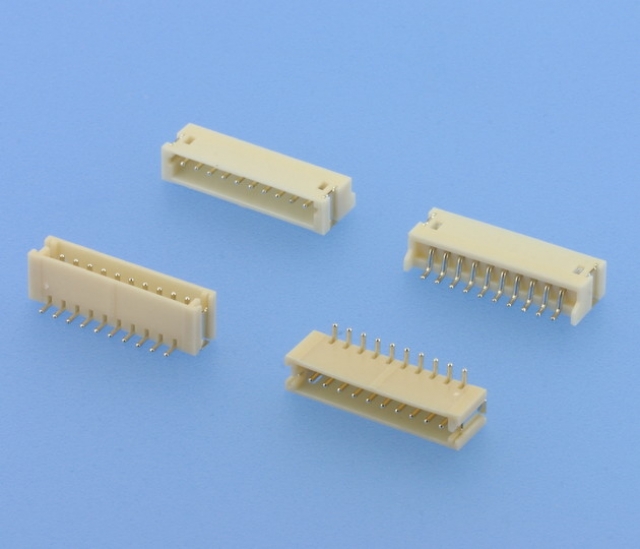

3 Stiftleiste stehend 4 Stiftleiste liegend |
50 Verzinnt |
ST In Stangen ohne Pick&Place-Pads TR (Option) Tape & Reel ohne P&P-Pads FTR (Option) Tape & Reel mit P&P-Film-Pads |
