Gehäuse | Messing, verzinnt |
---|---|
Isolierkörper | Thermoplastischer Kunststoff, nach UL94 V-0 |
Kontaktmaterial | Kupferlegierung |
Kontaktoberfläche | Gold über Nickel (siehe Optionen unten) |
Oberfläche Lötanschluss | Zinn über Nickel |
Lötbarkeit | IEC 60512-12A |
Durchgangswiderstand | < 30mΩ |
Isolationswiderstand | > 1000MΩ |
Spannungsfestigkeit | 500VAC |
Nennspannung | 30VRMS |
Nennstrom | 1,5A bei 25°C |
Temperaturbereich | -55°C ... +85°C |
Verarbeitung | Wellenlötverfahren |
Series | Type | Model | Colour | Plating |
---|---|---|---|---|
824 | 1 | 1 | 30 | 80 |

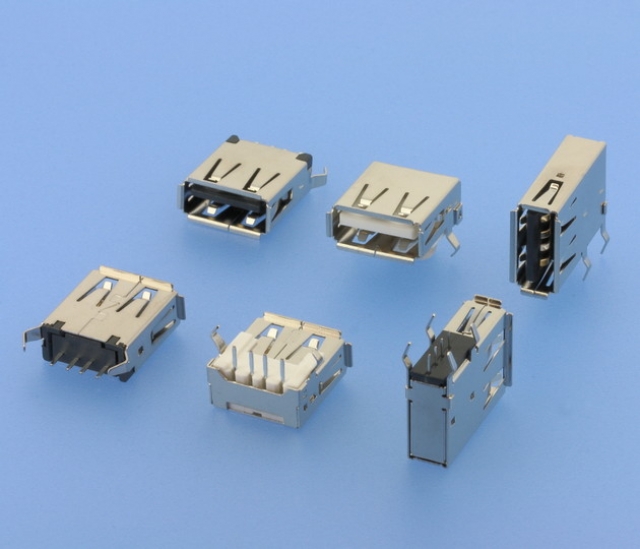

1 Type A (female) |
1 Top entry 2 Gewinkelt horizontal 3 Gewinkelt vertikal |
10 Schwarz 30 Weiß |
60 Sel. Au/Sn 80 Sel. Au 0,75µm/Sn (USB 2.0) |
