Isolierkörper | Thermoplastischer Kunststoff, nach UL94 V-0 |
---|---|
Kontaktmaterial | Kupferlegierung |
Aderquerschnitt | AWG 28 ~ 24 |
Lötbarkeit | IEC 60512-12A |
Durchgangswiderstand | < 20mΩ |
Isolationswiderstand | > 1000MΩ |
Spannungsfestigkeit | 800VAC |
Nennspannung | 250VAC |
Nennstrom | 1A |
Temperaturbereich | -25°C ... +85°C |
Verarbeitung | Wellenlötverfahren |
Series | Contacts | Type |
---|---|---|
523 | 07 | 1 |
02-16 |

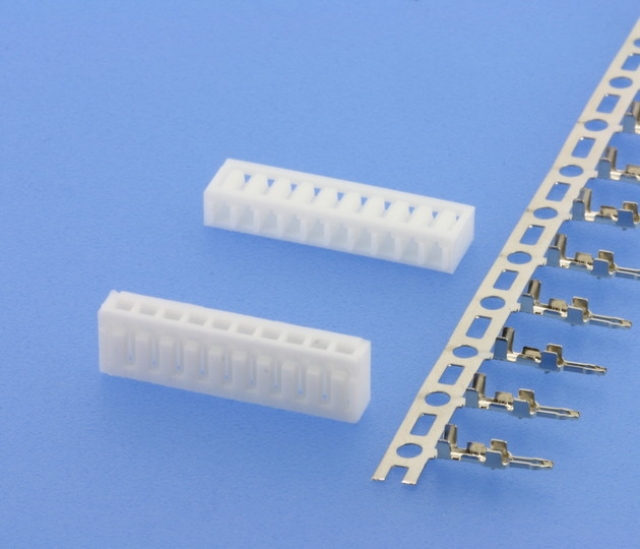

1 Crimp-Gehäuse |
Series | Contacts | Type | Plating |
---|---|---|---|
523 | 01 | 2 | 50 |
2 Crimp-Kontakte |
50 Verzinnt |
